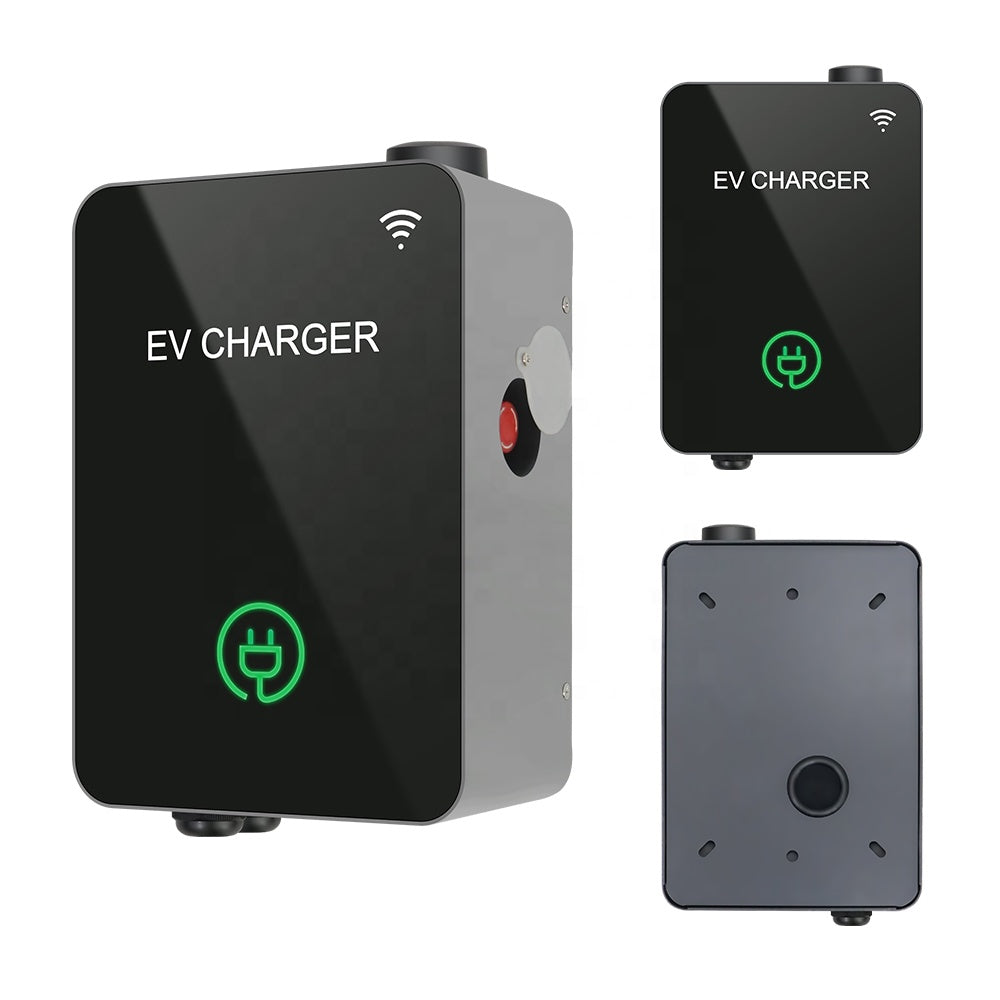

16A Type 2 IEC 62196 EV Plug Electric Car Charging Station with Charging Cable IEC62196 CE ROHS CN JIA 250V

Product Model: SGEN-EV32-WT2-S-008X SGEN-EV16-WT2-T-008X SGEN-EV32-WT2-T-008X
Plug Standard: Type2 / Type 1 Type2 Type2
Rated Current: 32A 1P /32A 16A 3P 32A 3P
Patch life: ≥ 10000 times ≥ 10000 times ≥ 10000 times
Power Rate: 7.4KW 11KW 22KW
Protection Level: IP65 IP65 IP65
Operation Voltage: 200V~250V 200V~250V 380V~450V
Certification: TUV CE TUV CE TUV CE
Standard: IEC 61851 IEC 61851 IEC 61851
Cable Specification: 3*6mm²+2*0.5mm² 5*2.5mm²+2*0.5mm² 5*6mm²+2*0.5mm²
Operating Temperature: -30℃ to +65℃
Function Option: Residential Use: WIFI Connect
Dimensions: 200mm (L) × 115mm (W) × 285mm (H)
Control Box Function: 1.Over and under frequency protection 2.Over Current Protection 3.Type B Protection 4.Over Temperature Protection 5.Overload protection (self-checking recover) 6.Ground Protection 7.Over voltage and under-voltage protection 8.Lighting Protection
