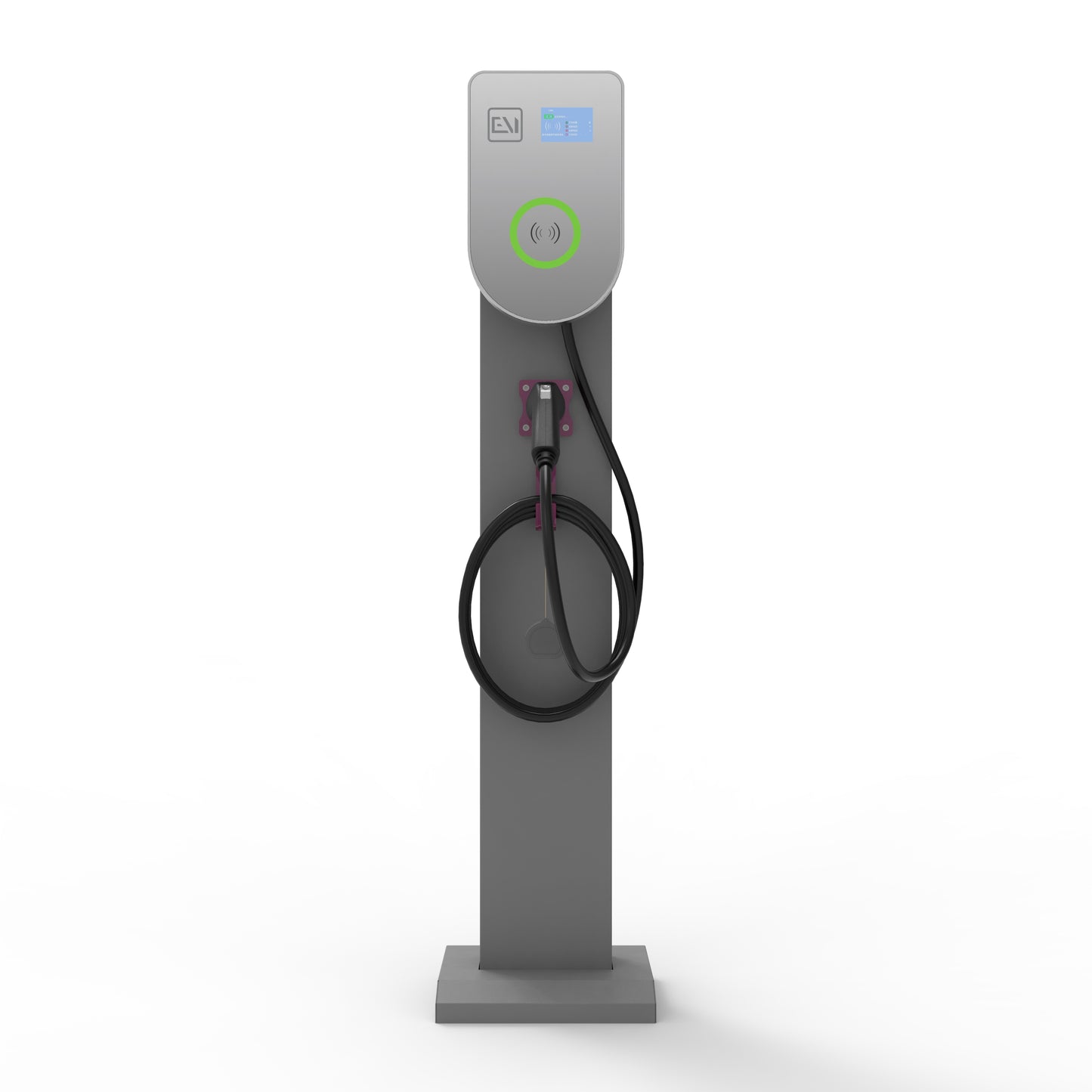

7KW 11KW 22KW AC USA/UK J1772/Mennekes Type1/Type2 Electric EV Car Charger EV Charging wallbox EV Charging station

Product Name: AC Charger Wallbox
Model: YHEVW-03
Structure: Charge Connector Type 1 /Type 2
: Power Cord Plug UK / US / Schuko/ CEE / Nema
: Cable Length 5m or Optional
: LED Indicator Green/Blue/Red
: LCD Display 4.3 Inch Touch Color Screen(Optional)
: RFID Reader ISO/IEC 14443 RFID Card Reader
: Start Mode Plug&Charge/RFID Card/APP
: Housing Material ABS+PC
: Accessory Cable Holder,Pedestal(Optional)
Power Input: Input Type 1P+N+PE/3P+N+PE
: Rated Voltage 230VAC±10%/400VAC±10%
: Rated Current 16A or 32A
: Grid Frequency 50Hz or 60Hz
Power Output: Output Voltage 230VAC±10%/400VAC±10%
: Maximum Current 16A or 32A
: Rated Power 7KW/11KW/22KW
Installation and Use: Installation Method Wall-mount/Pole-mount
: Charging Methods Swipe the card, Scan the code
: Communication Mode Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional)
: Charging Protocol OCPP 1.6J support（Optional）
: Charging Mode Automatic filling, Fixed power, Fixed amount, Fixed time
: Operating Temperature -30 ~ +50 °C
: Storage Temperature -40 ~ +85 °C
: Max. Operating Humidity 95%，Non-condensing
: Max. operating altitude 2000m
Safety and Certification: Energy Metering Embedded Meter Circuit Component With 1% accuracy
: Residual Current Device DC 6mA+Type A AC 30mA
: Impact Protection IK10
: Cooling method Natural Cooling
: Electrical Protection Over/under voltage protectionOver current protectionShort circuit protectionLightning protectionScram protectionPE link detection protectionL/N Reverse connection detection protectionOver temperature protectionToppling protectionLeakage protection (A-type leakage circuit breaker)
: Ingress Protection IP55
: Certification CE,ROSH,TUV,UL
: Certification and Conformity IEC61851-1,IEC62196-1/-2,SAE J1772
: Warranty 2 years
Package: Product Dimension 270mm*135mm*365mm（W*D*H）
: Package Dimension 325mm*260mm*500mm（W*D*H）
: Weight 5kg(Net ) / 6kg(Gross)
: External Packing Carrying case + Carton box
