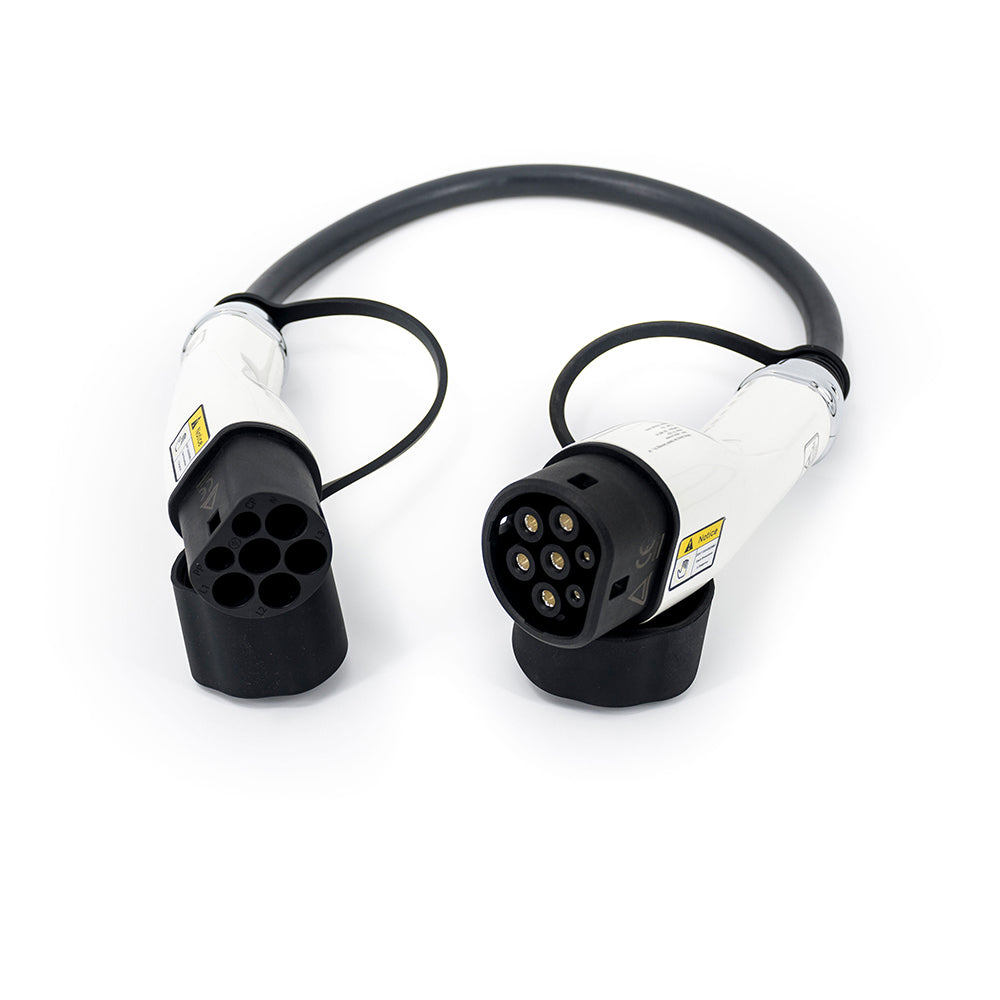

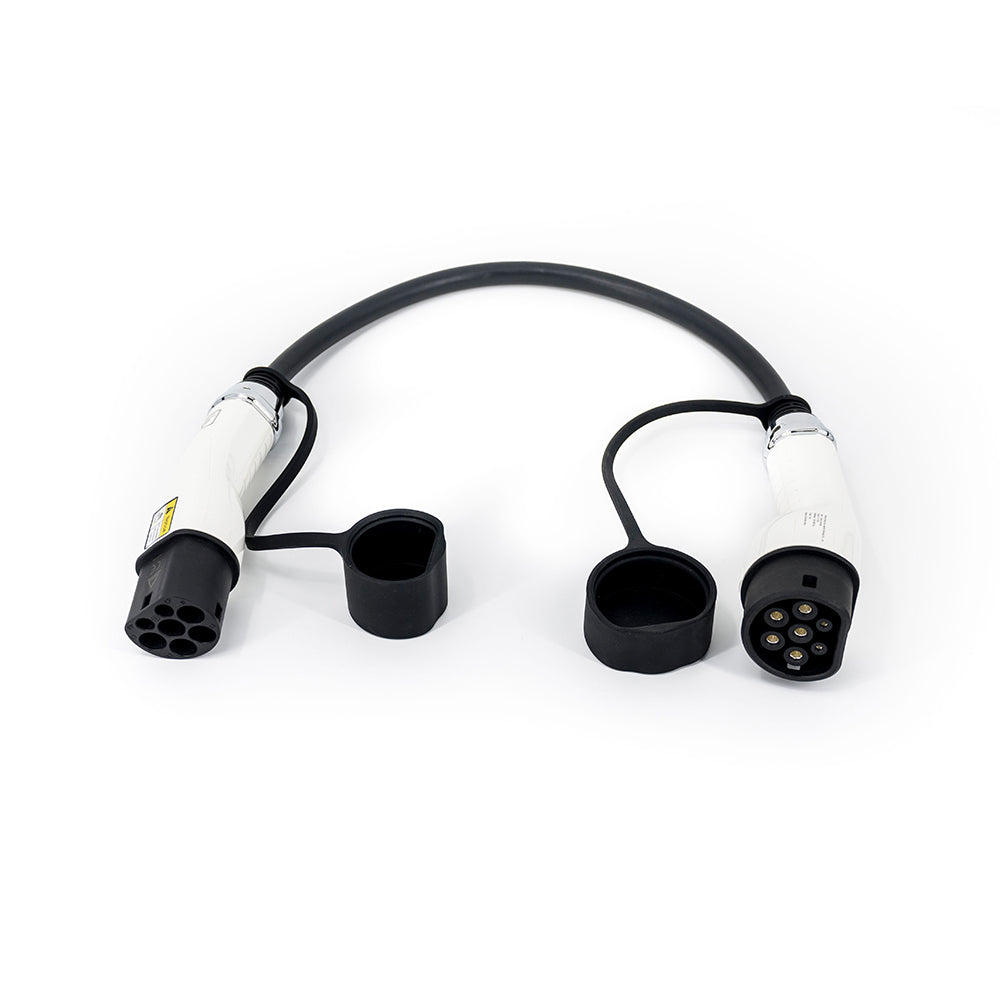

EV Charging Connector Type2 IEC 62196 Male Female AC 16A 32A 1 3 Phase Pile Vehicle End New Energy Electric Vehicles Car Charge
EV Charging Connector Type2 IEC 62196 Male Female AC 16A 32A 1 3 Phase Pile Vehicle End New Energy Electric Vehicles Car Charge
Couldn't load pickup availability
Want a Reliable EV Charger Manufacturer to Support Your Project?
You’ll Never Regret to Contact Us.
If You Still Not Found a Suitable Product, Please Contact Us>>
Full Series EV Charger
All types of High Voltage Connector from OEM Manufacturer in China
IEC series standards are the earliest international charging system standards formulated by IEC, which has important reference significance for the formulation of charging system standards in other countries. The standard also specifies the requirements for the connecting devices of the charging system, including the general requirements, dimensional compatibility, and interchangeability of plugs, sockets, vehicle couplers, and vehicle inlets. The connector you see next belongs to the IEC standards AC connector. They have a beautiful appearance, hand-held ergonomic design, and are easy to plug and unplug. Strong waterproof performance. In terms of performance, it can withstand 1m drop and 2T vehicle overpressure. IEC standards connector has been widely used. I hope our product is the one you are looking for.
Products Feature
| EV Charging | |
| Standards | GB/T 20234.2-2015, IEC 62196-2, SAE J1772,CHAdeMO |
| Connector Type: | Plug,Socket ,Cable,Adapter,Accessories |
| Type | AC, DC |
| Rated Current: | 10A, 16A, 32A, 40A, 50A, 63A,80A, 125A, 150A,200A , 250A |
| Application | Vehicle End, Charging Pile, Charging Pile to Vehicle End,Adapter,Accessories |
| Voltage | 110V, 220V, 240V, 250V, 415V,600V,750V, 1000V |
| Power | 2.2kW,3.5kW,7kW,8kW,22kW,65kW,90kW,127.5kW |
| Power Phase | Single phase, Three phase |
| Protection Grade | IP55, IP65 |
| Case Material | Thermoplastic |
| Durability | >10000 times |
Material:Shell: Thermoplastics
Insulator: Thermoplastic
Sealing Ring: Rubber Material
Insulator Flame Retardant Grade: Ul94-v0
Contact: Copper Alloy, Power Contact with Gold-plated, Signal Contact with Gold-plated
Environmental Performance:
Operating Temperature:-30℃~+50℃
Relative Humidity : 98% At40℃
Degree of Protection: Ip55 (during Charging)
Rating Voltage: 250 / 440V AC, 750V DC
Insulation Resistance: ≥1000mΩ( AC Charging Connector);
Used for connection between the high voltage cables inside the electric vehicle.
PS: the Size is Manually Measured and Not Very Accurate, Please Refer to the Actual Product.
COMPANY INFORMATION
Renhao Weiye Technology (Wuhan) Co., Ltd.
- Have More Than 16 Years Experience on Electronic Connectors and Has Achieved Good Reputation in the Industry. - We Acquired ISO 9001, ROHS, IP Waterproof Test ,Environment and Management Systems Certification to Ensure High Quality. Please Contact Us Free for More Details if Interested. - in Addition, You Are Always Welcome to Visit Our Office and Factory for Face to Face Conversation!
Our company adheres the business philology of "hardworking, pragmatic, innovation, excellence"
and values "trust, quality, service, Thanksgiving" to make constant effort to prefect our products. The company is ISO9001 certificated,and the products are ROHS, REACH compliant.
Applicable to 99% New Energy Vehicles on the Market !!!
For High-voltage Connection of Car Charger, High Voltage Distribution Box, Motor Controller, Air Conditioning, Ptc, Battery, Etc. Can Also Be Used for Short Circuit Control.
Packing Details :
1. Our standard packing: Individual part with transparent PE bag with label;
2. OEM package available
Shipping Methods :
1. Samples and Small quantity order
FedEx/DHL/UPS/TNT/SF ,Door to Door.
2. Batch goods : Express, By Air, by Sea or by Rail
3. FCL: Airport/Seaport/Railway Station receiving
Lead Time: 1-7 working days for samples; 7-15 working days for mass
