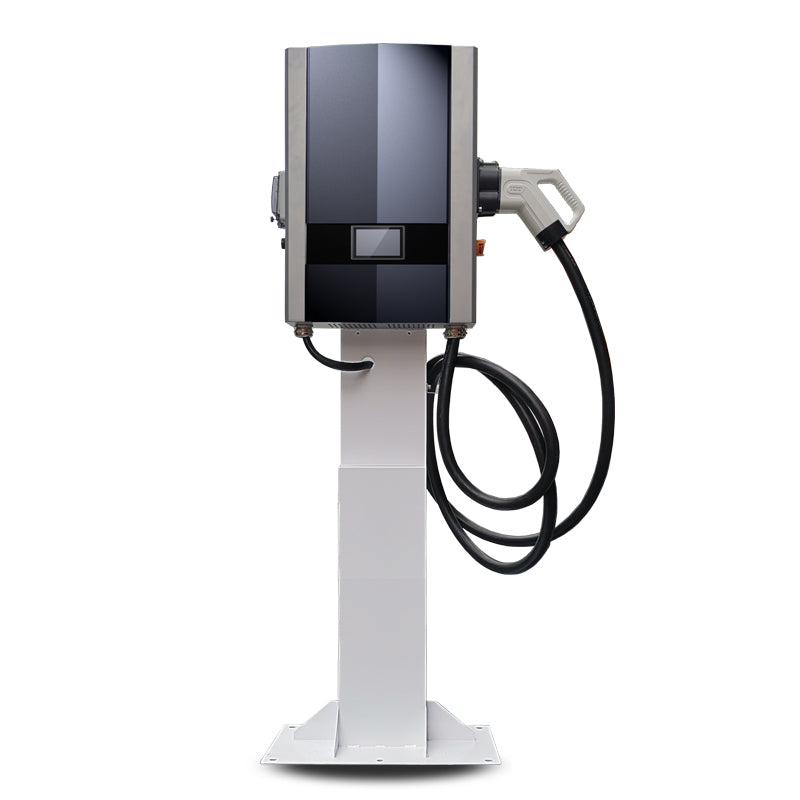

New Energy Smart Cargador LCD Screen GBT Car Wall Charger Auto Electrico 15KW Wallbox Electric Car Charging Station 200-750vdc

Production Parameters:
Model: 30KW
AC Input: Input Rating 380Vac±10%
: AC Input Connection 3P + N +PE, Wye connection
: Max. Input Current 30A
: Frequency 50 /60 Hz
: Power Factor >0.99@full load
: Efficiency 95%
DC Output: Output Voltage Range 200-750Vdc
: Max. Output Power 15KW
: Max. Output Current 25A
User Interface: TFT-LCD Touch Panel Yes(swiping card without TFT-LCD Touch Panel)
: Push Buttons Yes
: Interface Yes
Packing: Dimension W:548 ×378× 160mm U:1500×520× 250mm
: Weight Wall:30KG Upright:35KG
Environmental: Operating Temperature -40~85℃，25℃（TYPE）
: Humidity 5%-90% RH, non-condens,ng
: Altitude 2000m
: IP Level IP54
Mechanical: Cable Length 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable
: Regulation EN61851-1
Regulation: Certification CE , ROHS
: Charging protocol CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24
